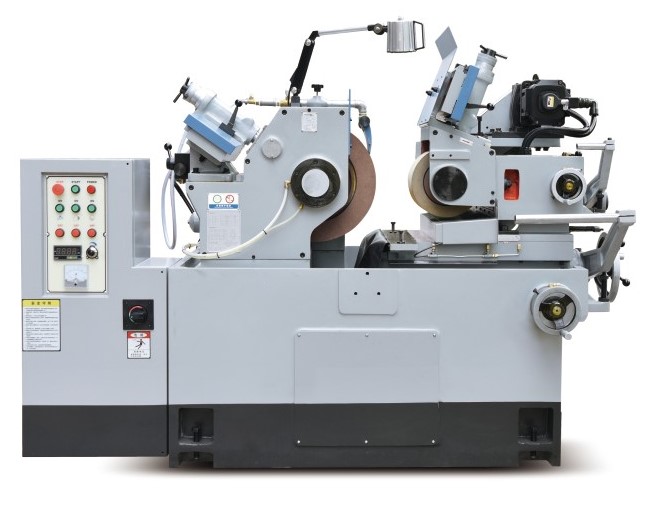

High precision and high performance Centerless Grinder
B type adjusting wheel rolling bearing spindle
Designed as a double-support flange-free structure, it can also be used when the working speed is low
Maintain ultra-high precision rotation of the spindle and obtain extremely high rigidity
H type grinding wheel hydrostatic spindle
The grinding wheel hydrostatic spindle is designed, developed and produced by Academician Fu Xincheng’s workstation
product, the working pressure of the static pressure bearing is 25 MPa, and the main shaft is suspended in the static pressure
Pressure bearing oil film effectively reduces spindle wear and achieves high precision
High rigidity, high speed and low friction
High-performance series is an improved model of the basic model
●HC-4520/25/30B/H
●HC-5020B/H
B type adjusting wheel rolling bearing spindle
Designed as a double-support flange-free structure, it can also be used when the working speed is low.
Maintain ultra-high precision rotation of the spindle and obtain extremely high rigidity.
H type grinding wheel hydrostatic spindle
The grinding wheel hydrostatic spindle is designed, developed and produced by Academician Fu Xincheng’s workstation.
product, the working pressure of the static pressure bearing is 25 MPa, and the main shaft is suspended in the static pressure
Pressure bearing oil film effectively reduces spindle wear and achieves high precision
High rigidity, high speed, and low friction.
Model | Unit | UNI-4520/25/30（B/H) | UNI-5020/H |
| Grinding diameter range | mm | Φ0.5～Φ60 | Φ1～Φ60 |
Grinding wheel size (outer *width*inner ) | mm | Φ455*205/255/305*Φ228.6 | Φ510*205*Φ254 |
Mechanical dimensions(L*W*H) | MM | 2350*1960*1550 | 2350*1960*1550 |
Mechanical weight | kg | 2850 | 3200 |
