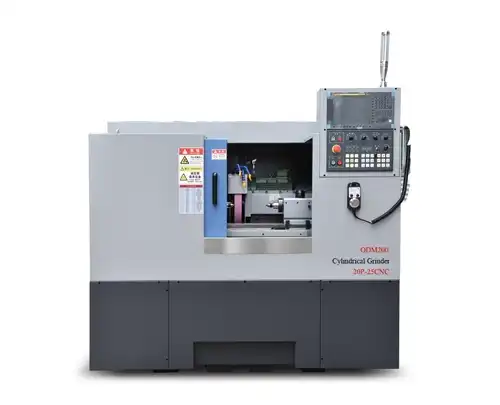

ODM CNC Cylindrical Grinder UNI-20P-25CNC

This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead
The spacing is 250MM, which can achieve high-precision and high-efficiency production
Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part
Dual drive tailstock models are available
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc
Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient

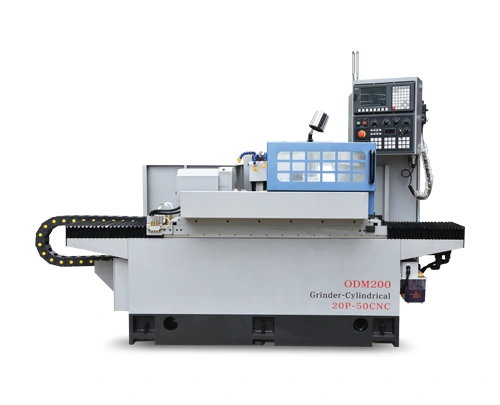

ODM CNC Cylindrical Grinder UNI-20P-50CNC

This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead
The spacing is 250MM, which can achieve high-precision and high-efficiency production
Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part
Dual drive tailstock models are available
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc
Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient

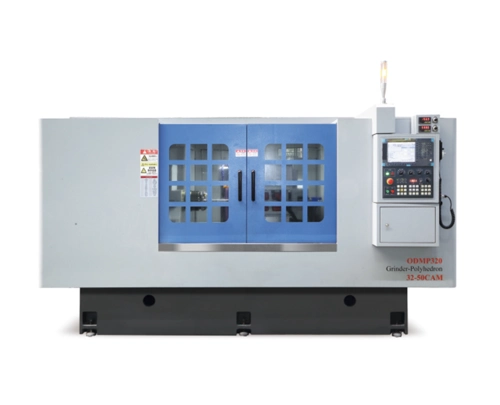

ODMP Eccentric Shaft Polyhedral CNC Cylindrical Grinder Machine ODMB32-50CAM

The eccentric shaft/polyhedral CNC grinder is a special model, and the grinding software developed with it only requires simple operation can achieve high-quality processing of eccentric, polyhedral, elliptical and other workpieces
The X-axis uses a linear motor, and the C-axis uses a servo direct drive plus circular grating

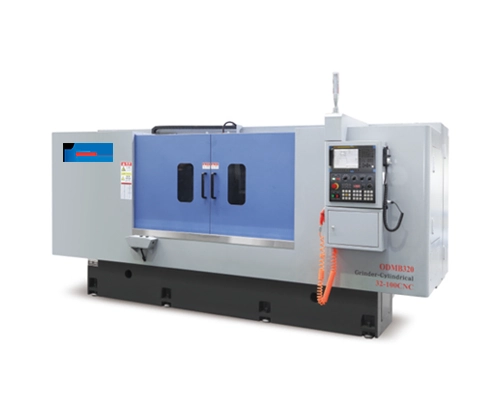

ODMB CNC universal Cylindrical Grinder ODMB32-100CNC

The CNC universal grinder is designed to handle a variety of compound grinding processes
The grinding wheel base rotates and grinds the direct drive method enables fast and high positioning accuracy rotation
The grinding wheel installation is modular, and the internal and external spindles can be freely combined according to the processing technology
Grinding wheel B axis I0/00 (I-inner spindle/0-outer spindle)

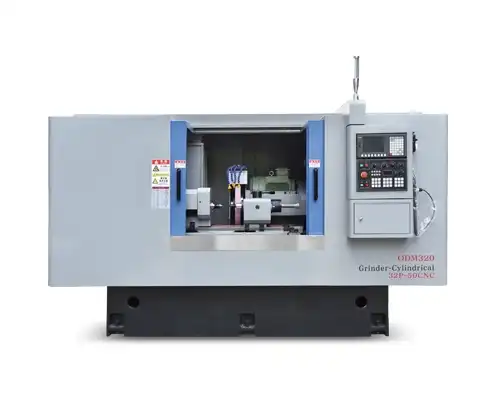

ODMH CNC High Speed Cylindrical Grinder UNI-ODM32P-50CNC

Static pressure high-speed spindle equipped with CBN grinding wheel (60/80/100m)/X-axis linear motor/head tailstock dual drive
This equipment is designed to meet the needs of high-precision and large-volume workpiece production.
It is equipped with a static pressure high-speed spindle.
The grinding efficiency of CBN grinding wheels is several times higher than that of traditional equipment
The X-axis linear motor of the machine tool cooperates with the closed-loop grating to achieve fast and accurate feed
Using a head and tail frame dual-drive design that does not require claws or chucks to complete all parts of the workpiece at one time processing

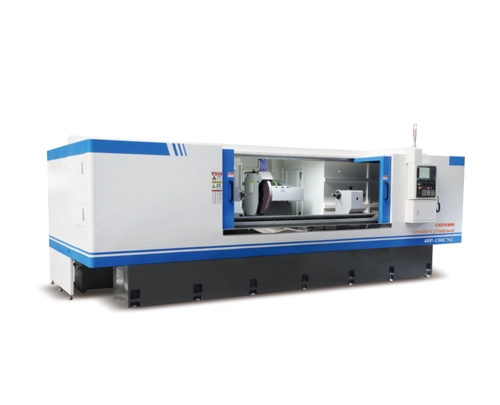

ODM CNC Cylindrical Grinder 40/60-100/150/200CNC

This series of grinders is designed for processing large workpieces and has both high precision and high rigidity heavy machine tools
The optional static pressure headstock and static pressure spindle are suitable for heavy cutting
P-Straight type and A--incline type are optional
More functions and larger specifications can be designed and manufactured according to processing requirements

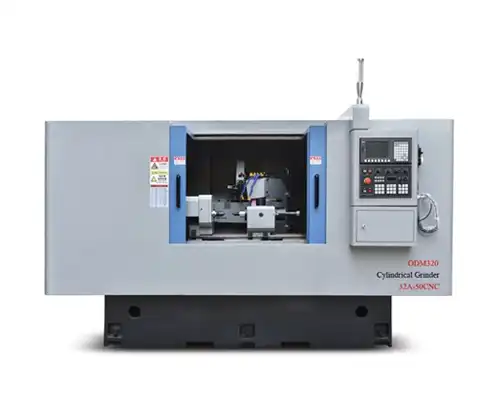

ODM CNC Cylindrical Grinder UNI-32A-50CNC

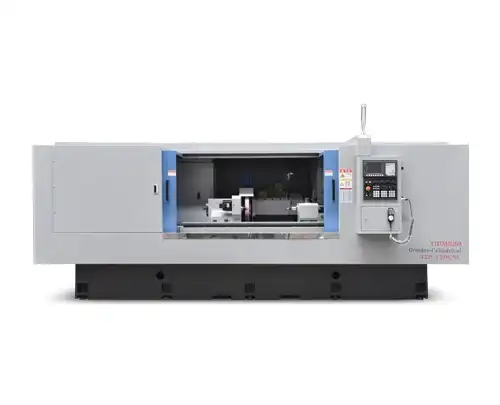

ODM CNC Cylindrical Grinder UNI-32P-150CNC

This series of machines has the most powerful processing capabilities and excellent comprehensive cost performance. A wide range of cutting types and sizes
Static pressure spindle and high-speed spindle are available
Static pressure head frame is optional
Extended tailstock, double-layer tailstock, dual-drive tailstock, and hydraulic tailstock are available
The 320 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient

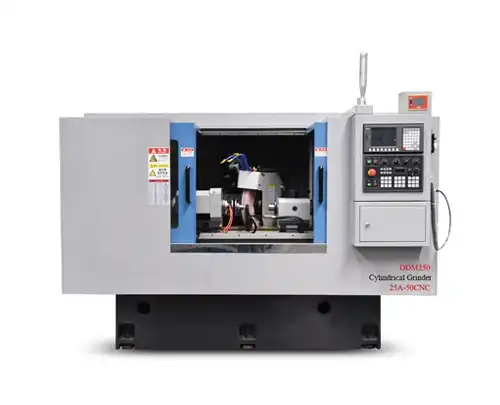

ODM CNC Cylindrical Grinder UNI-25A-50CNC

The 250 series has a wealth of optional components, which can freely realize various required functions
A variety of dressing devices and clamps are available
End face and outer diameter automatic detection devices are optional
Can be used with a variety of robot automation systems to achieve fully automated flow operations
250 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient

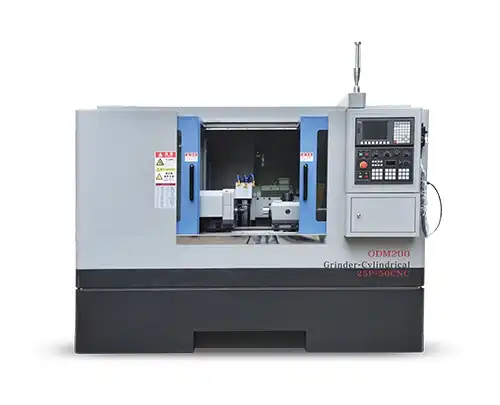

ODM CNC Cylindrical Grinder UNI-25P-50CNC

The 250 series has a wealth of optional components, which can freely realize various required functions
A variety of dressing devices and clamps are available
End face and outer diameter automatic detection devices are optional
Can be used with a variety of robot automation systems to achieve fully automated flow operations
250 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient

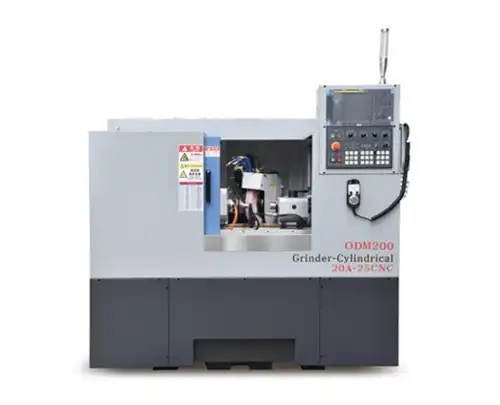

ODM CNC Cylindrical Grinder UNI-20A-25CNC

This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead
The spacing is 250MM, which can achieve high-precision and high-efficiency production
Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part
Dual drive tailstock models are available
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc
Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient
