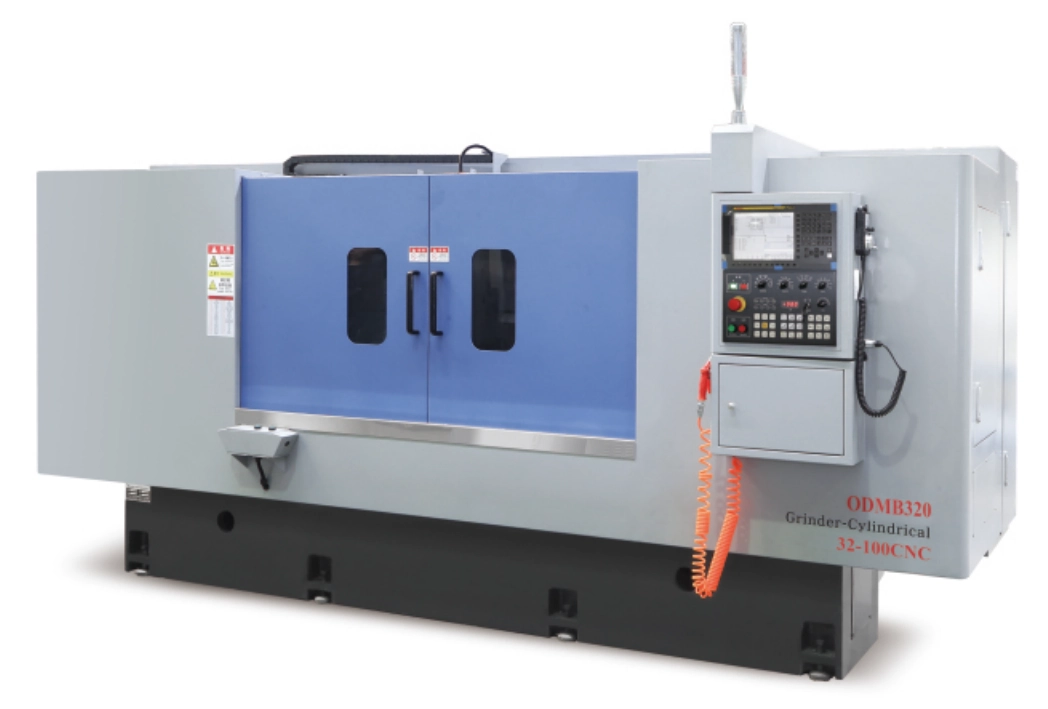

ODMB CNC universal Cylindrical Grinder ODMB32-100CNC

ODMB CNC universal Cylindrical Grinder ODMB32-100CNC

The CNC universal grinder is designed to handle a variety of compound grinding processes
The grinding wheel base rotates and grinds the direct drive method enables fast and high positioning accuracy rotation
The grinding wheel installation is modular, and the internal and external spindles can be freely combined according to the processing technology
Grinding wheel B axis I0/00 (I-inner spindle/0-outer spindle)

Send Inquiry

•ODMB32-100CNC

1. The CNC universal grinder is designed to handle a variety of compound grinding processes. The grinding wheel base rotates and grinds the direct drive method enables fast and high positioning accuracy rotation.

2. The grinding wheel installation is modular, and the internal and external spindles can be freely combined according to the processing technology.

products-1-1



products-1-1

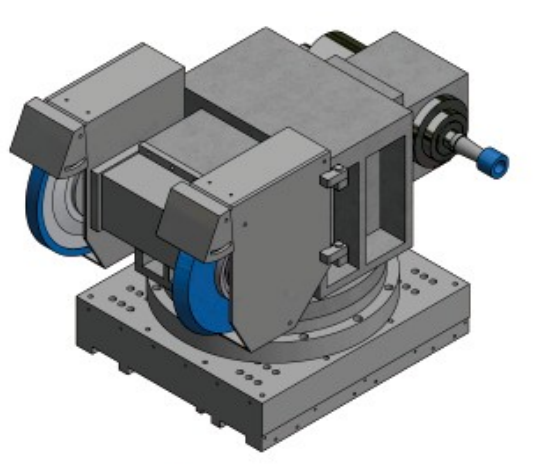

ODMB32-100CNC Turret type grinding wheel base

Grinding wheel B axis I0/00 (I-inner spindle/0-outer spindle)

Model Unit UNI-ODM32P-50CNC
Maximum rotary diameter of worktable mm 320
The two centers is the longest distance mm 500
Grinding wheel size (Diameter * thickness * aperture ) mm Φ510*50*Φ203.2
Grinding wheel speed   Hydrostatic high-speed spindle with CBN grinding wheel(100m/s)
