ODM CNC Cylindrical Grinder UNI-32P-150CNC

ODM CNC Cylindrical Grinder UNI-32P-150CNC

This series of machines has the most powerful processing capabilities and excellent comprehensive cost performance. A wide range of cutting types and sizes
Static pressure spindle and high-speed spindle are available
Static pressure head frame is optional
Extended tailstock, double-layer tailstock, dual-drive tailstock, and hydraulic tailstock are available
The 320 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient

Send Inquiry

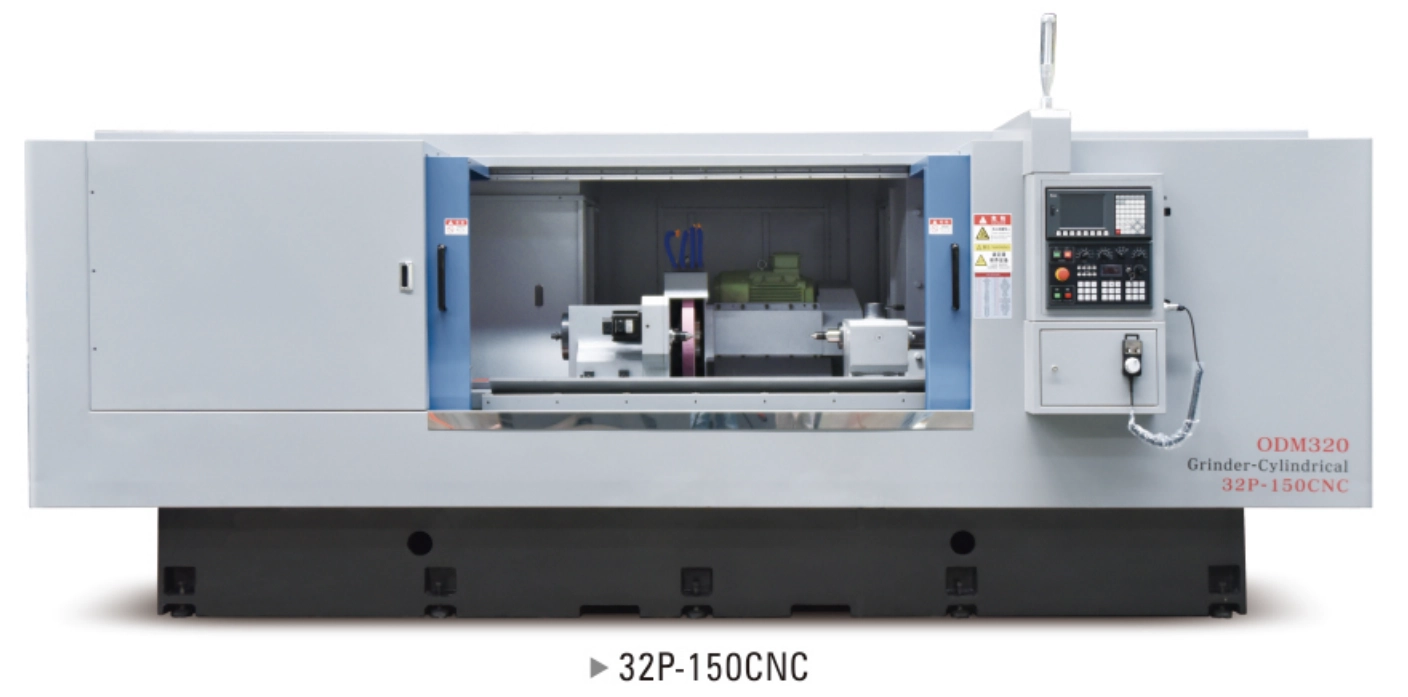

ODM320 series 32P 150CNC

product-1-1

1. This series of machines has the most powerful processing capabilities and excellent comprehensive cost performance. A wide range of cutting types and sizes.

2. Static pressure spindle and high-speed spindle are available.

3. Static pressure head frame is optional.

4. Extended tailstock, double-layer tailstock, dual-drive tailstock, and hydraulic tailstock are available.

5. The 320 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient.

Model

Unit

UNI-32P-150CNC

Maximum rotary diameter of worktable

mm

320

The two centers is the longest distance

mm

500/1000/1500/2000

Grinding wheel size

(Diameter * thickness *aperture)

mm

Φ510*50*Φ203.2 Φ610*100*Φ203.2

Maximum load of two tops

kg

150
