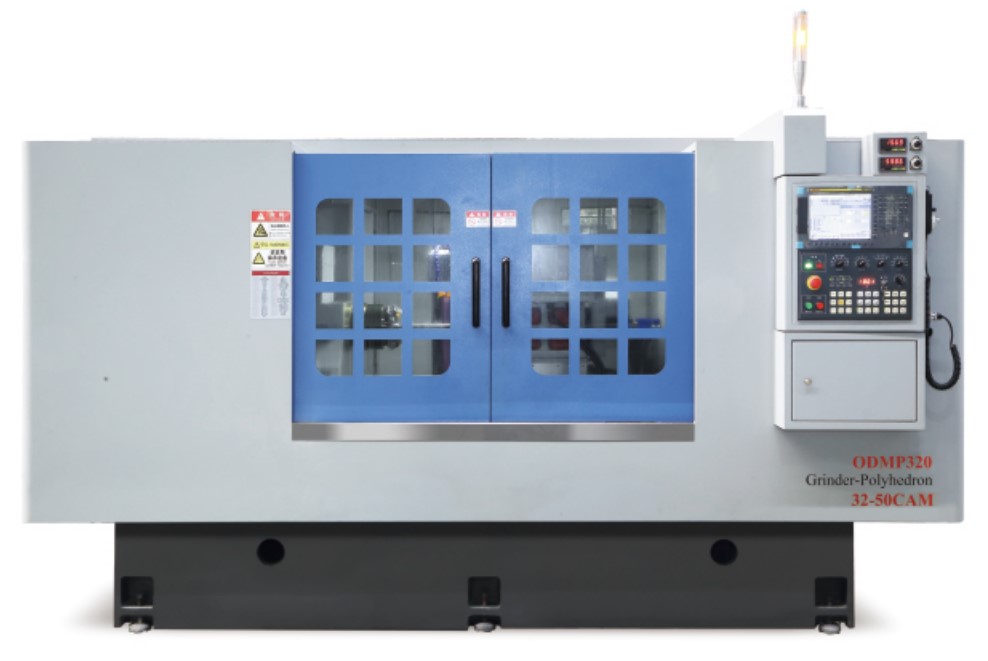

ODMP Eccentric Shaft Polyhedral CNC Cylindrical Grinder Machine ODMB32-50CAM

ODMP Eccentric Shaft Polyhedral CNC Cylindrical Grinder Machine ODMB32-50CAM

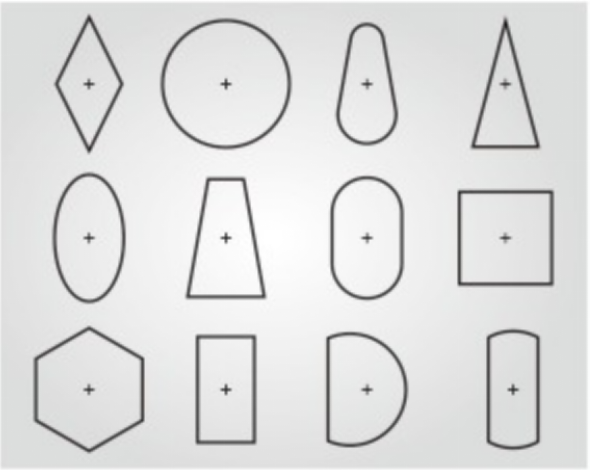

The eccentric shaft/polyhedral CNC grinder is a special model, and the grinding software developed with it only requires simple operation can achieve high-quality processing of eccentric, polyhedral, elliptical and other workpieces
The X-axis uses a linear motor, and the C-axis uses a servo direct drive plus circular grating

Send Inquiry

•ODMB32-50CAM

1. The eccentric shaft/polyhedral CNC grinder is a special model, and the grinding software developed with it only requires simple operation can achieve high-quality processing of eccentric, polyhedral, elliptical and other workpieces.

2. The X-axis uses a linear motor, and the C-axis uses a servo direct drive plus circular grating.

products-1-1

products-1-1



products-1-1



Model

Unit UNI-ODM32P-50CNC
Maximum rotary diameter of worktable mm 320
The two centers is the longest distance mm 500
Grinding wheel size (Diameter * thickness * aperture ) mm Φ510*50*Φ203.2
Grinding wheel speed   Hydrostatic high-speed spindle with CBN grinding wheel(100m/s)

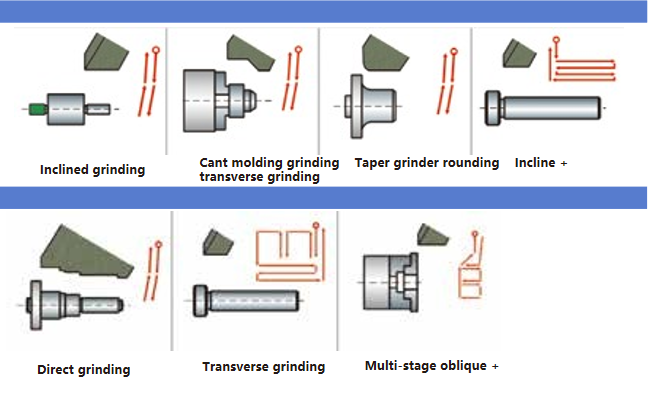

Grinding mode

products-1-1



Standard accessories

1. Cylindrical grinding grinding software V1.0

2. 1 set of wheel flange & 1 wheel

3. 1 set of wheel flange remover

4. MT.4 center and nut 1 set

5. MT.5 center and nut 1 set

6. 1 set of water tank

7. Coolant pump motor 1 piece

8. 1 set of tools

9. 4 open wrenches & 1 adjustable wrenches

10. 1 Phillips screwdriver & 1 flat-head screwdriver

11. Three hex wrenches

12. One single-point knife pen

13. 9 pieces of floor pads & 9 pieces of screws

14. Self-tightening spring chicken heart peach chuck 3 pieces
