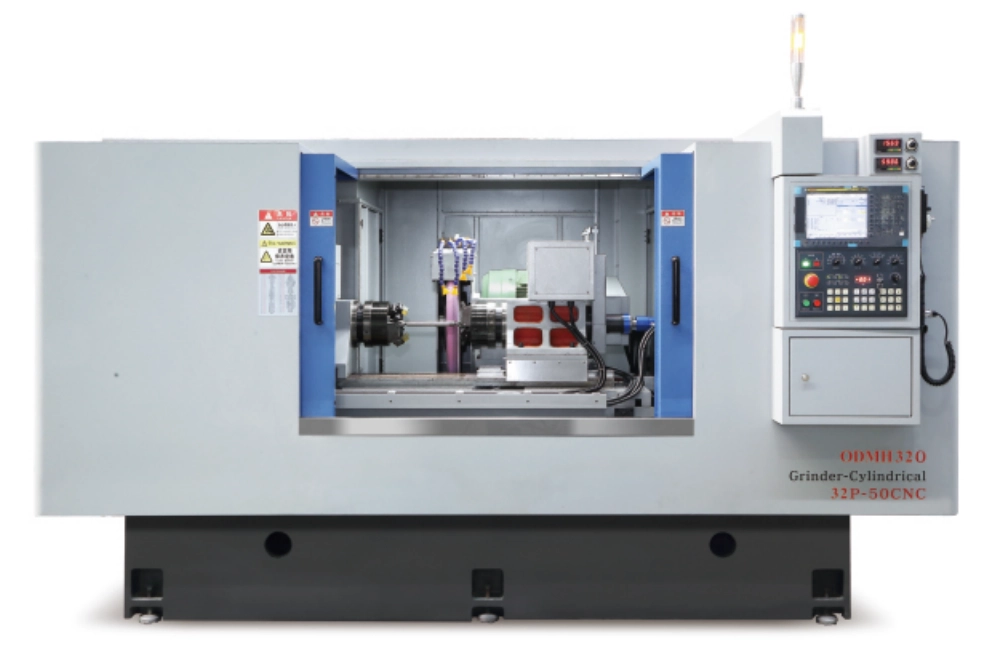

ODMH CNC High Speed Cylindrical Grinder UNI-ODM32P-50CNC

ODMH CNC High Speed Cylindrical Grinder UNI-ODM32P-50CNC

Static pressure high-speed spindle equipped with CBN grinding wheel (60/80/100m)/X-axis linear motor/head tailstock dual drive
This equipment is designed to meet the needs of high-precision and large-volume workpiece production.
It is equipped with a static pressure high-speed spindle.
The grinding efficiency of CBN grinding wheels is several times higher than that of traditional equipment
The X-axis linear motor of the machine tool cooperates with the closed-loop grating to achieve fast and accurate feed
Using a head and tail frame dual-drive design that does not require claws or chucks to complete all parts of the workpiece at one time processing

Send Inquiry

•ODM32-50CNC

products-1-1



products-1-1



1. Static pressure high-speed spindle equipped with CBN grinding wheel (60/80/100m)/X-axis linear motor/head tailstock dual drive.

2. This equipment is designed to meet the needs of high-precision and large-volume workpiece production. It is equipped with a static pressure high-speed spindle. The grinding efficiency of CBN grinding wheels is several times higher than that of traditional equipment.

3. The X-axis linear motor of the machine tool cooperates with the closed-loop grating to achieve fast and accurate feed.

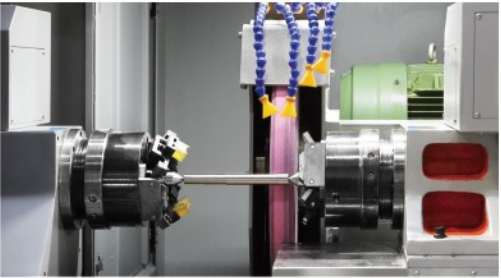

4. Using a head and tail frame dual-drive design that does not require claws or chucks to complete all parts of the workpiece at one time processing.

Model Unit UNI-ODM32P-50CNC
Maximum rotary diameter of worktable mm 320
The two centers is the longest distance mm 500
Grinding wheel size (Diameter * thickness * aperture ) mm Φ510*50*Φ203.2
Grinding wheel speed   Hydrostatic high-speed spindle with CBN grinding wheel(100m/s)
