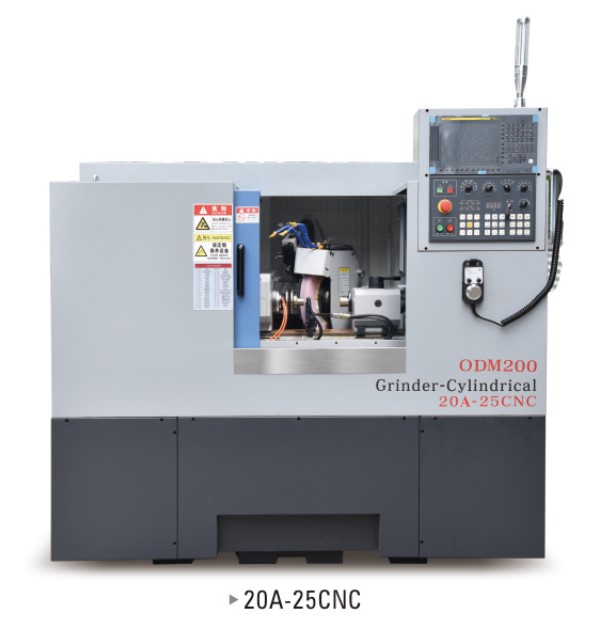

ODM CNC Cylindrical Grinder UNI-20A-25CNC
This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead
The spacing is 250MM, which can achieve high-precision and high-efficiency production
Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part
Dual drive tailstock models are available
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc
Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient
ODM 200 series 20A-25CNC
1. This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead. The spacing is 250MM, which can achieve high-precision and high-efficiency production.
2. Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part.
3. Dual-drive tailstock models are available.
4. P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc.
5. Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient.
|
Model |
Unit |
UNI-20A-25CNC |
|
Maximum rotary diameter of worktable |
mm |
200 |
|
The two centers is the longest distance |
mm |
250 |
|
Grinding wheel size (Diameter * thickness * aperture ) |
mm |
Φ405*38~50*Φ127 |
|
Maximum load of two tops |
kg |
40 |
