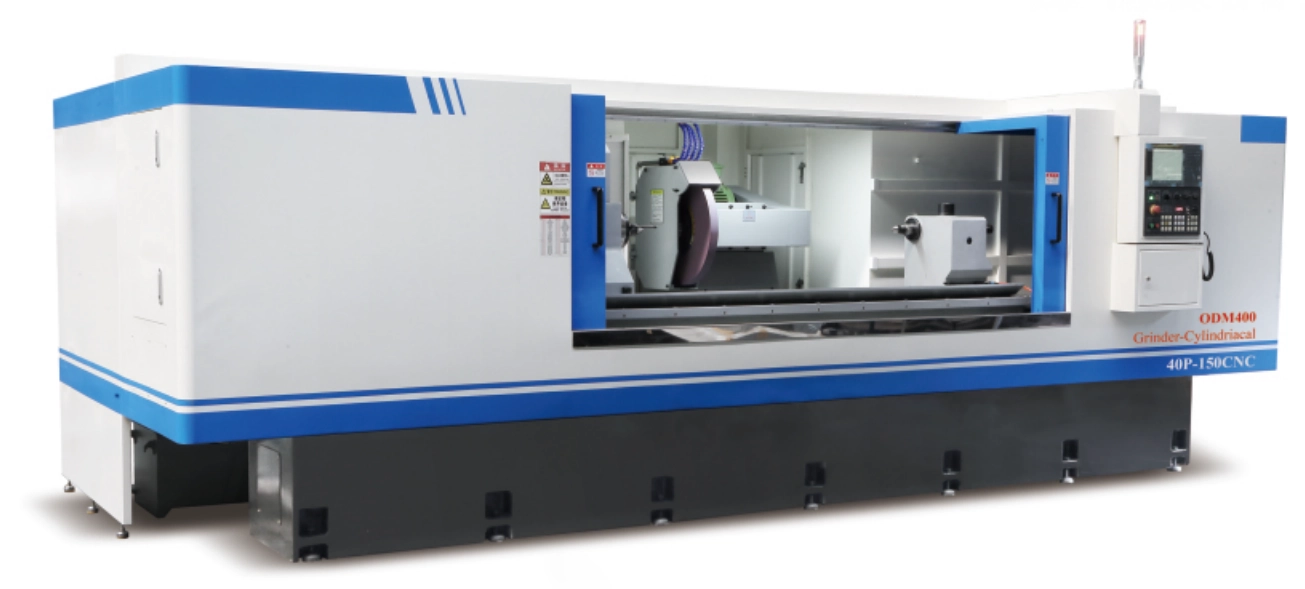

ODM CNC Cylindrical Grinder 40/60-100/150/200CNC
This series of grinders is designed for processing large workpieces and has both high precision and high rigidity heavy machine tools
The optional static pressure headstock and static pressure spindle are suitable for heavy cutting
P-Straight type and A--incline type are optional
More functions and larger specifications can be designed and manufactured according to processing requirements
● ODM400/600 series 40/60-100/150/200CNC
|
Model |
Unit |
40/60-100/150/200CNC |
|
Maximum rotary diameter of worktable |
mm |
400/600 |
|
The two centers is the longest distance |
mm |
1000/1500/2000 |
|
Grinding wheel size (Diameter * thickness * aperture ) |
mm |
Φ610*50*Φ203.2 |
|
Maximum load of two tops |
kg |
350 |
