ODM CNC Cylindrical Grinder UNI-20P-25CNC
This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead
The spacing is 250MM, which can achieve high-precision and high-efficiency production
Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part
Dual drive tailstock models are available
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc
Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient
● ODM 200 series

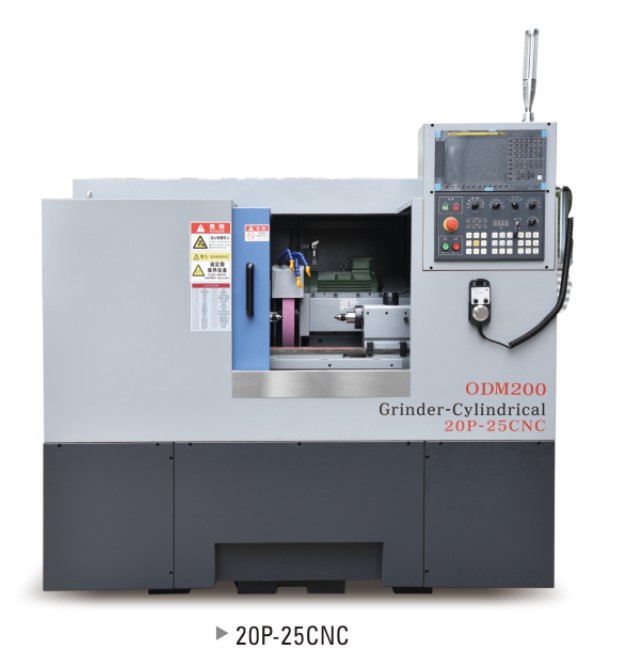

20P-25/50CNC

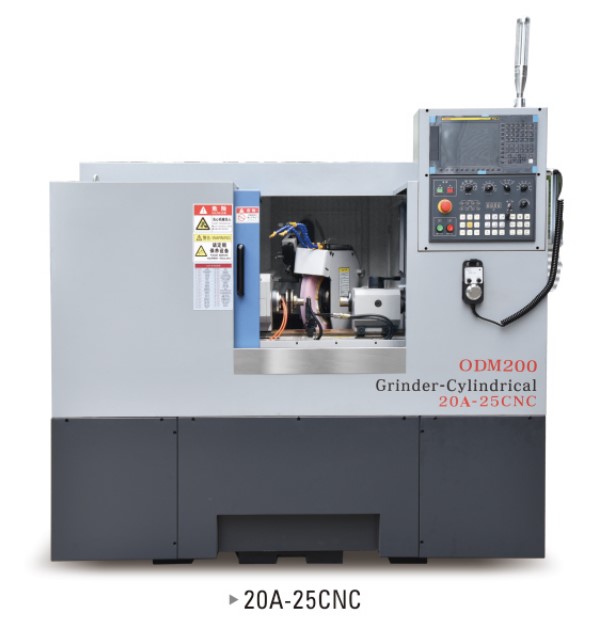

20A-25CNC
|
|
Straight forward grinder | Incline forward grinder |
1. This series of small grinders is designed for the mass production of small workpieces, with the smallest overhead. The spacing is 250MM, which can achieve high-precision and high-efficiency production.
2. Assembly type bearing spindle, oil supply and plastic precision scraping hard rail on the upper part.
3. Dual drive tailstock models are available.
P type straight forward type is suitable for ordinary cylindrical surfaces, tapered surfaces, formed cylindrical surfaces, Grinding of R surfaces, grooves, etc.
4. Type A is designed with a straight track inclined grinding wheel structure, which makes grinding large end face workpieces more convenient.
Model | Unit | UNI-20P-25/50CNC | UNI-20A-25CNC |
Maximum rotary diameter of worktable | mm | 200 | 200 |
The two centers is the longest distance | mm | 250/500 | 250 |
Grinding wheel size (Diameter * thickness * aperture ) | mm | Φ405*38~50*Φ127 | Φ405*38~50*Φ127 |
Maximum load of two tops | kg | 40 | 40 |
●ODM 250 series

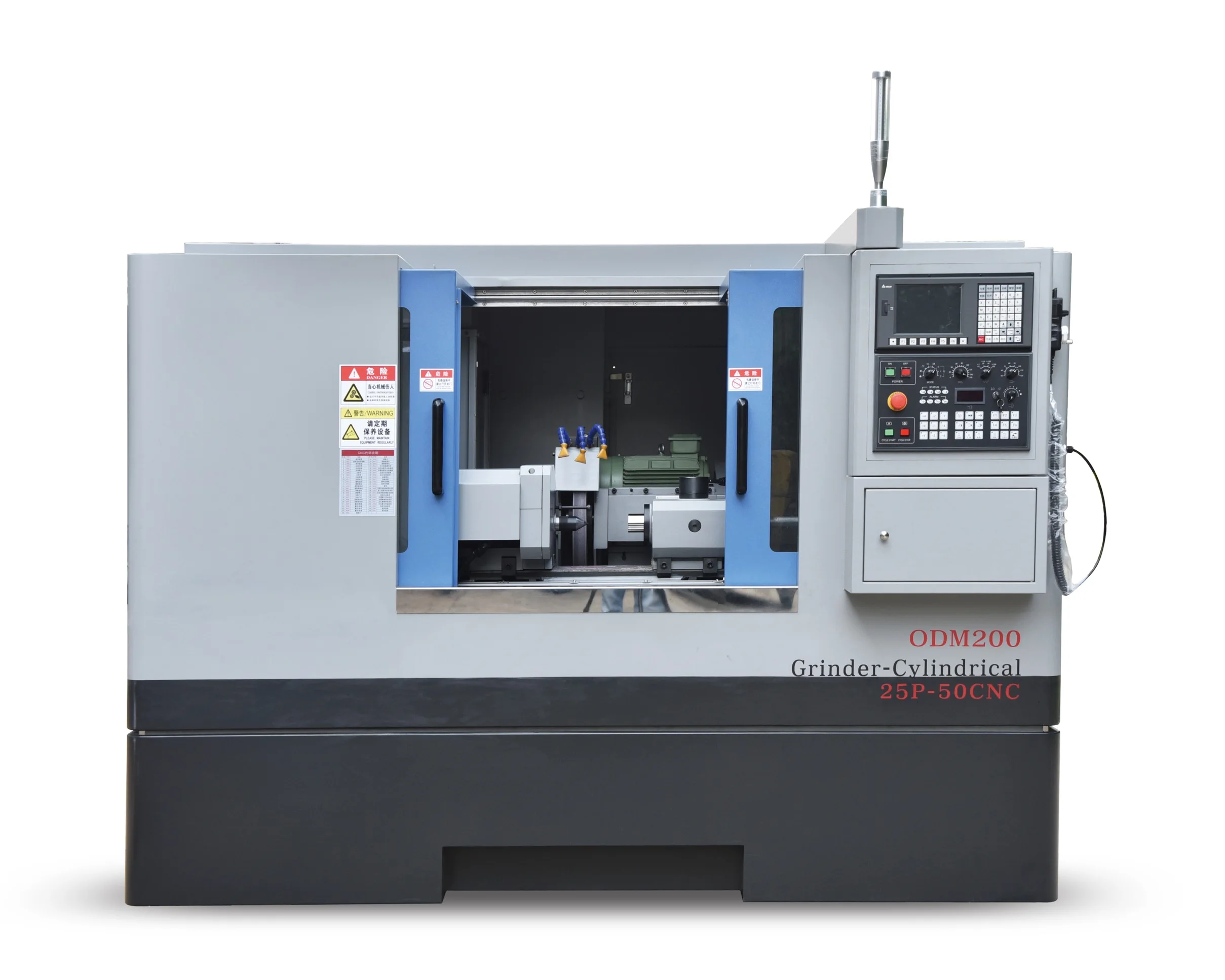

25P-50/75CNC

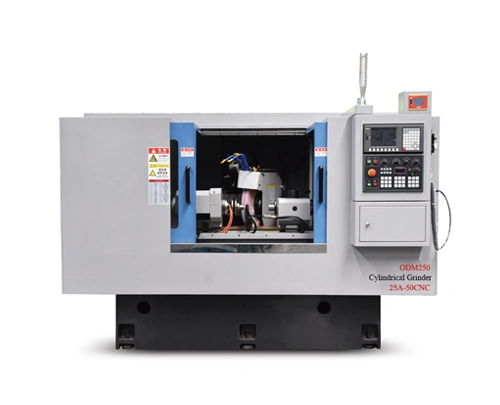

25A-50/75CNC
|
|
Straight forward grinder | Incline forward grinder |
1. The 250 series has a wealth of optional components, which can freely realize various required functions.
2. A variety of dressing devices and clamps are available.
3. End face and outer diameter automatic detection devices are optional.
4. Can be used with a variety of robot automation systems to achieve fully automated flow operations.
5. 250 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient.
Model | Unit | UNI-25P-50/75CNC | UNI-25A-50/75CNC |
Maximum rotary diameter of worktable | mm | 250 | 250 |
The two centers is the longest distance | mm | 500/750 | 500/750 |
Grinding wheel size (Diameter * thickness * aperture ) | mm | Φ510*38~50*Φ203.2 | Φ510*50*Φ203.2 |
Maximum load of two tops | kg | 80 | 80 |
●ODM320 series
32P50/100/150/200CNC

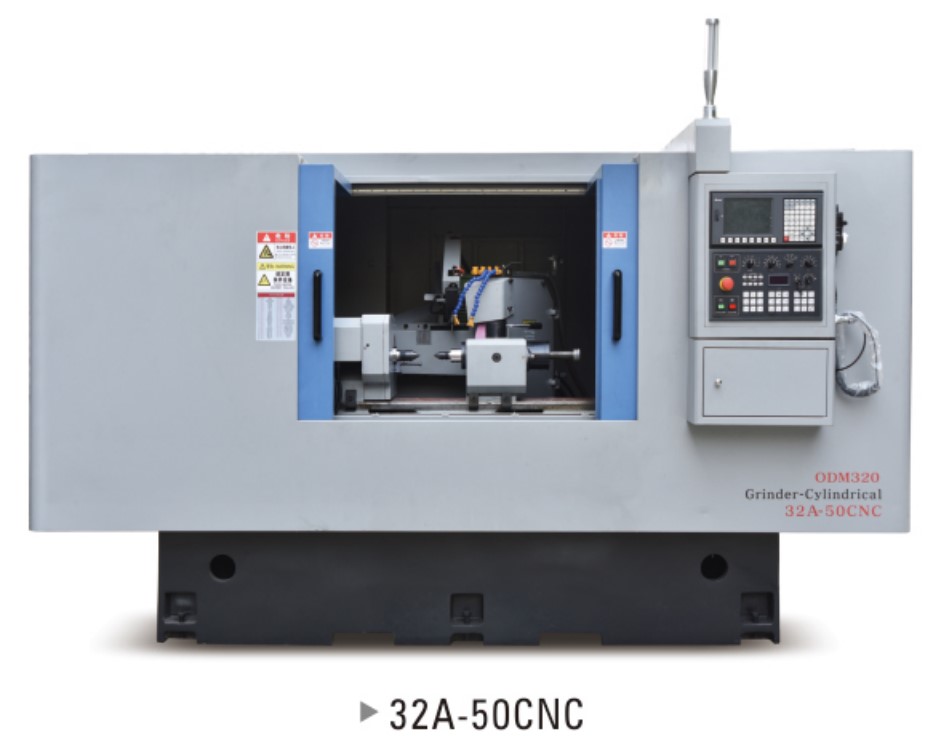

32A-50/100CNC
|
|
| Straight Forward Grinder | Incline Forward Grinder |
1.This series of machines has the most powerful processing capabilities and excellent comprehensive cost performance. A wide range of cutting types and sizes.
2. Static pressure spindle and high-speed spindle are available.
3. Static pressure head frame is optional.
4. Extended tailstock, double-layer tailstock, dual-drive tailstock, and hydraulic tailstock are available.
5. The 320 series A type is designed with an inclined track and inclined feed structure, which makes the end face grinding more efficient.
Model | Unit | UNI-32P-50/100/150/200CNC | UNI-32A-50/100CNC |
Maximum rotary diameter of worktable | mm | 320 | 320 |
The two centers is the longest distance | mm | 500/1000/1500/2000 | 500/1000 |
Grinding wheel size (Diameter * thickness *aperture) | mm | Φ510*50*Φ203.2 Φ610*100*Φ203.2 | Φ510*50*Φ203.2 Φ610*100*Φ203.2 |
Maximum load of two tops | kg | 150 | 150 |

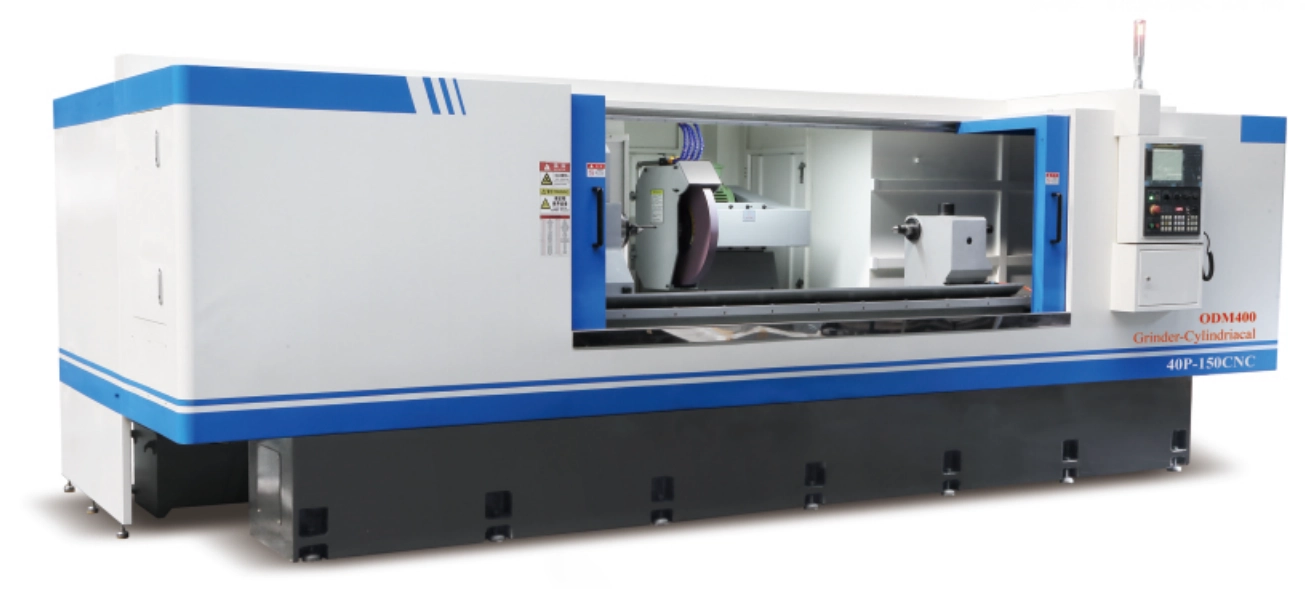

● ODM400/600 series
40/60-100/150/200CNC
40/60A-100CNC
1. This series of grinders is designed for processing large workpieces and has both high precision and high rigidity heavy machine tools.
2. The optional static pressure headstock and static pressure spindle are suitable for heavy cutting.
3. P-Straight type and A--incline type are optional.
4. More functions and larger specifications can be designed and manufactured according to processing requirements.
Model | Unit | 40/60-100/150/200CNC | 40/60A-100CN |
Maximum rotary diameter of worktable | mm | 400/600 | 400/600 |
The two centers is the longest distance | mm | 1000/1500/2000 | 1000 |
Grinding wheel size (Diameter * thickness * aperture ) | mm | Φ610*50*Φ203.2 | Φ610*50*Φ203.2 |
Maximum load of two tops | kg | 350 | 350 |
