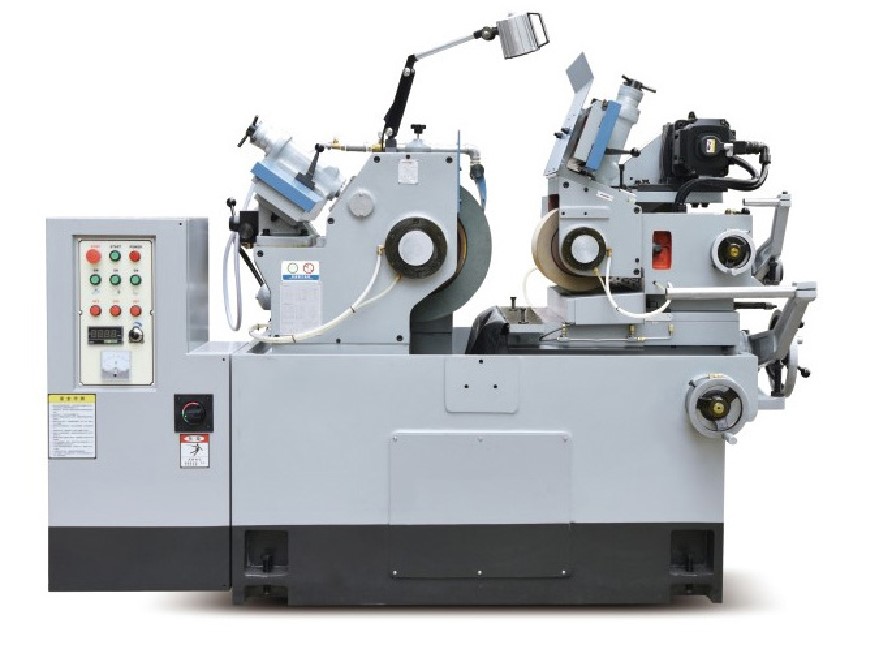

High precision basic type Centerless Grinder
The high-precision basic series has the best cost performance and can Complete standard pass grinding and stop grinding, roundness
Within 0.001mm
The grinding wheel guide wheel spindle adopts dynamic pressure spindle, and the track is artificial
The work shovel scrapes the hard rail and the grinding wheel guide wheel is hydraulically dressed
●HC-12/18/1810/1812S
●HC-20/24/2412S
1. The high-precision basic series has the best cost performance and canComplete standard pass grinding and stop grinding roundness Within 0.001mm.
2. The grinding wheel guide wheel spindle adopts a dynamic pressure spindle, and the track is artificial
3.The work shovel scrapes the hard rail and the grinding wheel guide wheel is hydraulically dressed.
Model | Unit | UNI-12S | UNI-18/1810/1812S | UNI-20S | UNI-24/2412S |
Grinding diameter range | mm | Φ0.5～Φ40 | Φ0.5～Φ60 | Φ1～Φ60 | Φ1～Φ80 |
Grinding wheel size (outer *width*inner ) | mm | Φ305*150*Φ120 | Φ455*205/255/305*Φ228.6 | Φ510*205*Φ254 | Φ610*205/305* Φ304.8 |
Mechanical dimensions(L*W*H) | MM | 1800*1400*1450 | 2350*1960*1550 | 2350*1960*1550 | 2700*2350*1550 |
Mechanical weight | kg | 1700kg | 2850 | 3200 | 6500 |
