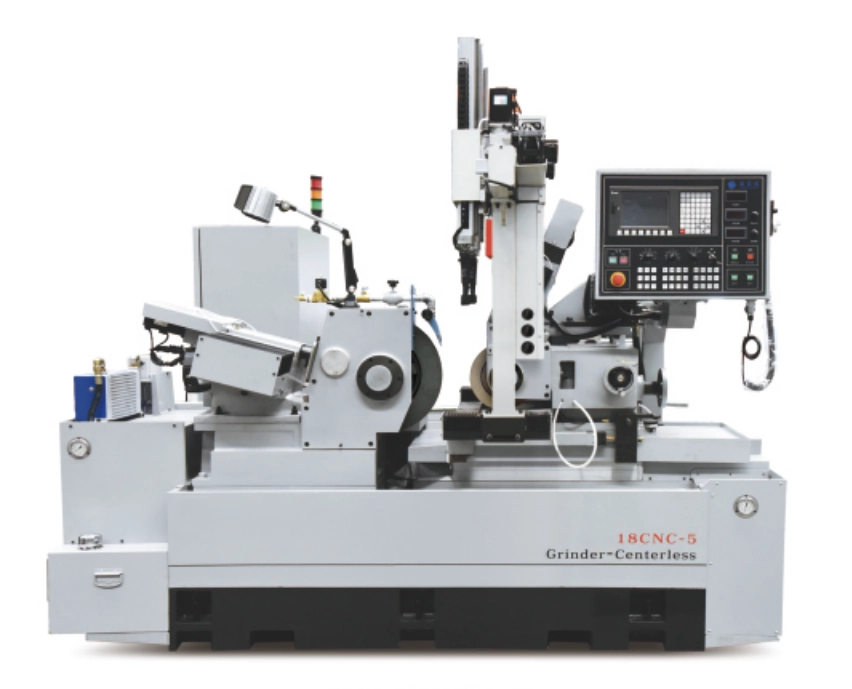

UNI-18 CNC-5 High precision CNC type Centerless Grinder
The CNC centerless grinder adopts CNC control system to provide interactive Operation interface
Various combinations of X (1-6) axes realize the processing of complex-shaped workpieces.
Reduce the difficulty of manual operations
H grinding wheel hydrostatic spindle available (18/20 type)
Ht hydrostatic track available (model 18/20)
B guide wheel bearing spindle is optional (18/20 type)
●UNI-12CNC-X
●UNI-18/1810/1812CNC-X
●UNI-20CNC-X
|
|

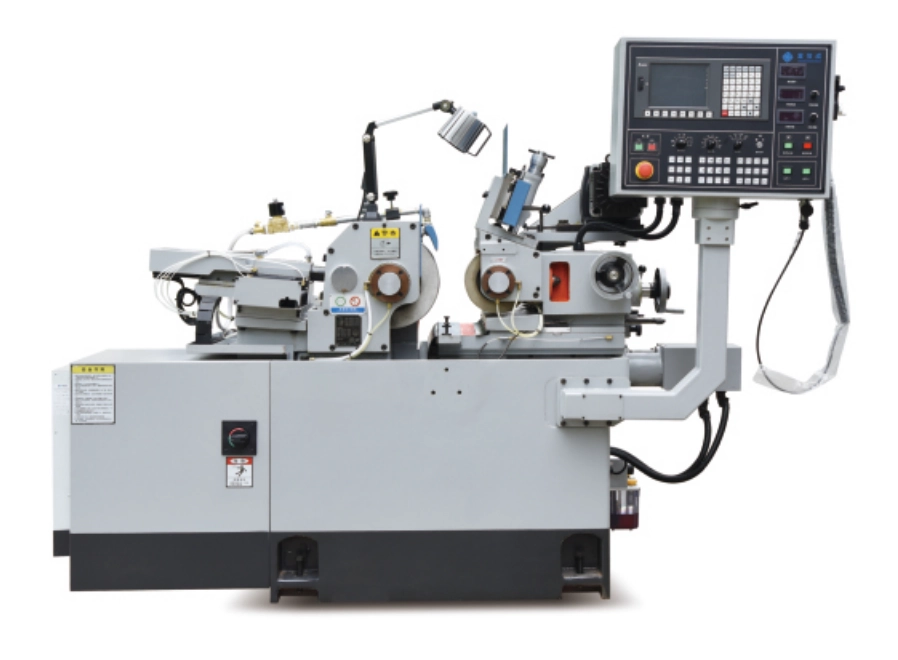

UNI-18 CNC-5 | UNI-12CNC-3 |
1. The CNC centerless grinder adopts CNC control system to provide interactive Operation interface
2. Various combinations of X (1-6) axes realize the processing of complex-shaped workpieces.
3. Reduce the difficulty of manual operations
4. H grinding wheel hydrostatic spindle available (18/20 type)
5. Ht hydrostatic track available (model 18/20)
6. B guide wheel bearing spindle is optional (18/20 type)
Model | Unit | UNI-12CNC-X | HC-18/1810/1812CNC-X | UNI-20CNC-X |
Grinding diameter range | mm | Φ0.5～Φ40 | Φ0.5～Φ60 | Φ1～Φ60 |
Grinding wheel size (outer *width*inner ) | mm | Φ305*150*Φ120 | Φ455*205/255/305*Φ228.6 | Φ510*205*Φ254 |
Mechanical dimensions(L*W*H) | MM | 1800*1400*1450 | 2350*1960*1550 | 2350*1960*1550 |
Mechanical weight | kg | 1700kg | 2850 | 3200 |
