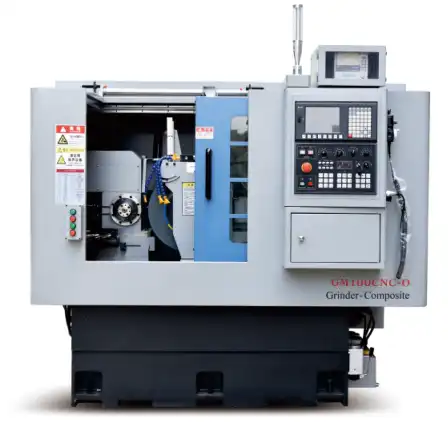

UNI-GM100CNC-I/O/II GM CNC Composite Grinder
Customized compound grinder to meet the processing requirements of small special workpieces.
There are various options for design choices of internal and external diameter mechanical spindles and electric spindles.
Three-claw, collet, diaphragm and other clamps can be designed and installed to meet various special workpieces.
• GM100CNC-I/O/II)
I-----Inner diameter spindle motor
O---Outer diameter spindle motor
1. Customized compound grinder to meet the processing requirements of small special workpieces.
2. There are various options for design choices of internal and external diameter mechanical spindles and electric spindles.
3. Three-claw, collet, diaphragm and other clamps can be designed and installed to meet various special workpieces.
|
Model |
Unit |
UNI-GM100CNC-I/O/II |
|
Maximum rotary diameter of worktable |
mm |
200 |
|
Range of grinding inner diameter |
mm |
Φ6~100 |
|
Range of grinding outer diameter |
mm |
Φ6~100 |
|
Grinding depth |
mm |
100 |
|
Maximum travel of table |
mm |
270 |
|
Maximum weight of work |
kg |
40 |
|
Remark: Customized small composite grinder |
||
