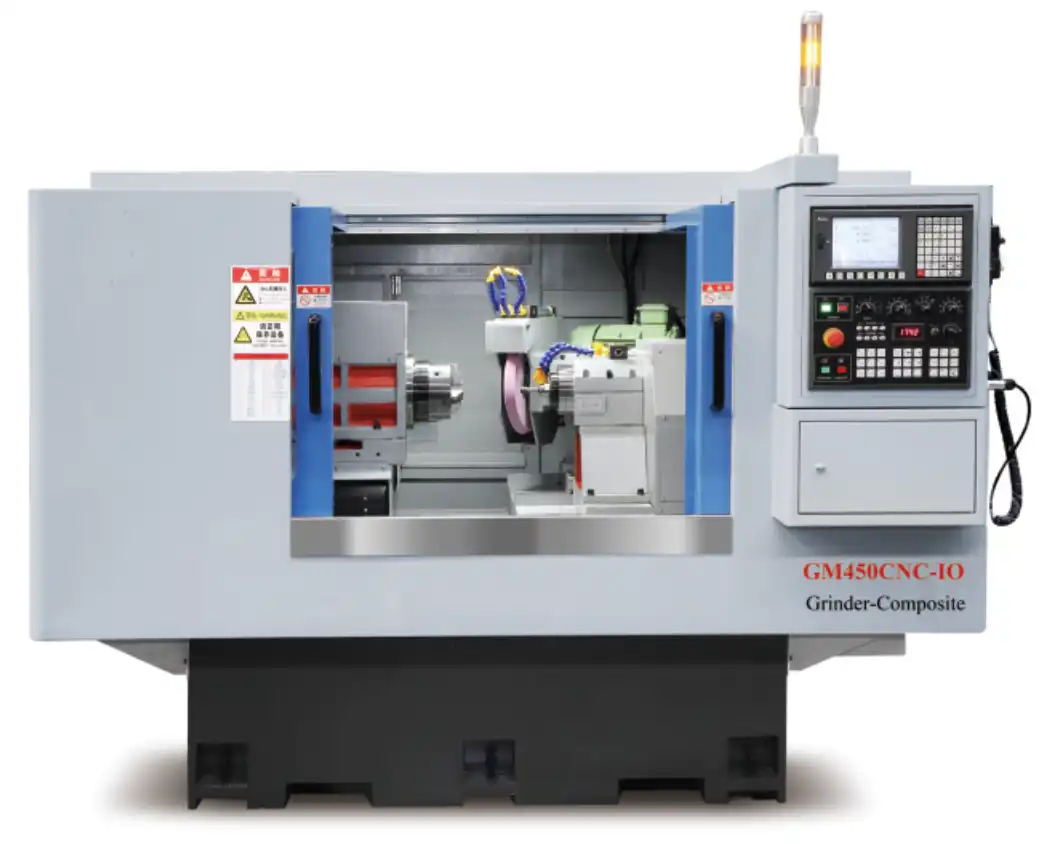

UNI-GM450CNC-IO/II GM CNC Composite Grinder

UNI-GM450CNC-IO/II GM CNC Composite Grinder

This model is the most powerful and widely used compound grinder. With one clamping of the workpiece, it can process multiple grinding surfaces such as inner diameter, outer diameter, end face, and taper.
It can be used with various automatic measuring devices to ensure high-precision requirements for workpiece processing.

Send Inquiry

• GM CNC Composite Grinder GM450CNC-IO/II)

  I-----Inner diameter spindle motor

 O---Outer diameter spindle motor

product-1-1

Model

Unit

UNI-GM450CNC-IO/II

Maximum rotary diameter of worktable

mm

500

Range of grinding inner diameter

mm

Φ6~150

Grinding wheel size (Diameter * thickness * aperture )

mm

Φ450*50*Φ127

Grinding depth

mm

150

Maximum travel of table

mm

120+400

Maximum weight of work

kg

50
