Precise Structure(CNC Internal Grinder)

Precise Structure(CNC Internal Grinder)

Frame structure, the use of Meehanna cast iron, low center of 8 gravity design, by the latest finite element computer aided analysis, its dramatic design is more than 10 N/ m, the lowest natural frequency design is more than 150Hz.
This excellent structural design makes the machine fully shock-proof and shock-absorbing, ensuring its high rigidity and maximum damping performance, thereby extending the service life of the machine.
High rigidity box structure design, with excellent machine stability.
Longitudinal and transverse slide plates are made of high quality cast iron, precision grinding and manual cutting process to obtain extremely high linear motion accuracy.

Send Inquiry

• Precise structure(CNC internal grinder)

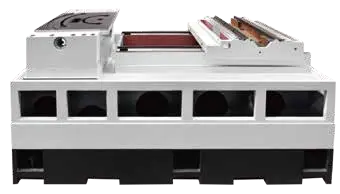

   Machine structure

product-1-1


1. Frame structure, the use of Meehanna cast iron, low center of 8 gravity design, by the latest finite element computer aided analysis, its dramatic design is more than 10 N/ m, the lowest natural frequency design is more than 150Hz. This excellent structural design makes the machine fully shock-proof and shock-absorbing, ensuring its high rigidity and maximum damping performance, thereby extending the service life of the machine.

2. High rigidity box structure design, with excellent machine stability.

3. Longitudinal and transverse slide plates are made of high quality cast iron, precision grinding and manual cutting

4. process to obtain extremely high linear motion accuracy.Working heads

product-1-1



  The working head structure is high and rigid design, the guide rail contact surface is processed by precise manual spatulation technology, driven by servo motor with ball bearing screw, and the movement is smooth and high precision.

Wheel head holder

product-1-1



Grinding wheel spindle speed selection: 6000~50000rpm grinding wheel and rod are available in different specifications..

Grinding wheel dresser

product-1-1



It can be automatically corrected and trimmed by CNC controller, which is suitable for trimming the outer circle end face and taper.。



product-1-1



product-1-1



product-1-1



Hydraulic three-jaw chuck device (special accessories) Disk type working head (special accessories) Diamond roller device (special accessories)
