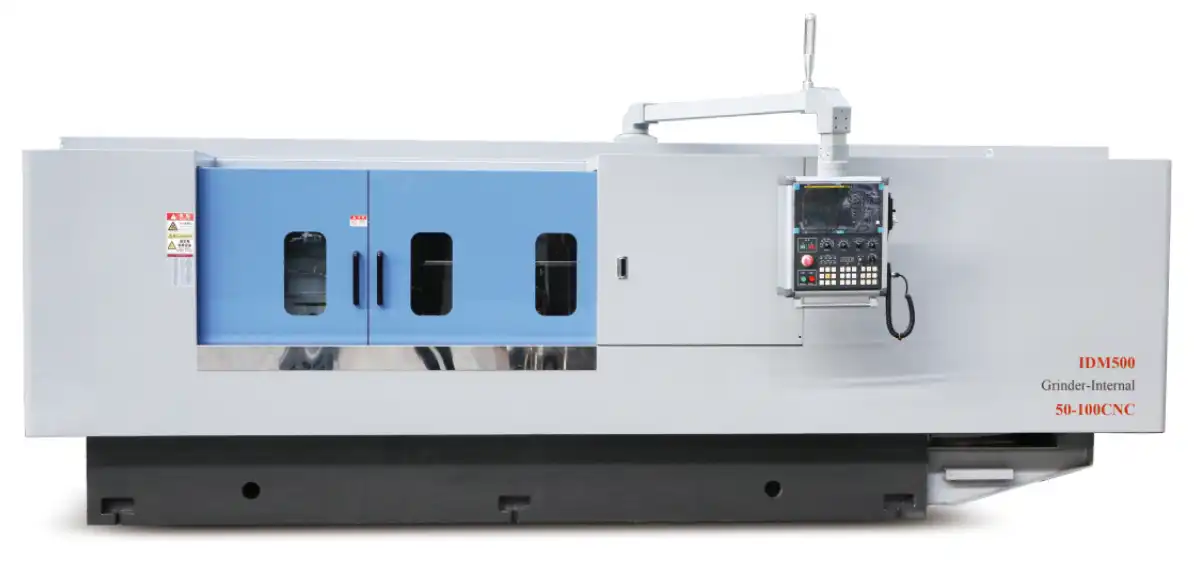

UNI-50-100CNC IDM500 CNC Internal Grinder

UNI-50-100CNC IDM500 CNC Internal Grinder

This model is designed for oversized and overlong workpieces, and the grinding wheel spindle is an integrated mechanical type. Spindle with both high precision and high rigidity.
Various accessories such as flexible traction, central auxiliary material rack, and tooling fixtures are designed according to the characteristics of the workpiece sex is optional.
More functions can be designed and manufactured according to processing requirements.

Send Inquiry

•IDM500 50-45CNC/50-100CNC

product-1-1

1. This model is designed for oversized and overlong workpieces, and the grinding wheel spindle is an integrated mechanical type. Spindle with both high precision and high rigidity.

2. Various accessories such as flexible traction, central auxiliary material rack, and tooling fixtures are designed according to the characteristics of the workpiece sex is optional.

3. More functions can be designed and manufactured according to processing requirements.

Model

Unit

UNI-50-45CNC

UNI-50-100CNC

Maximum rotary diameter of worktable

mm

800

900

Range of grinding inner diameter

mm

Φ50~500

Φ100~500

Grinding depth

mm

450

1000

Maximum travel of table

mm

800

1300

Maximum weight of workpiece

kg

500

1200

Standard accessories

1. Internal grinding software V1.0

2. Grinding cooling device (water tank, water pump, water pipe)1 set

3. Diamond knife and pen 1 set

4. Angle adjustment table 1 set

5. Toolbox 1 set

6. Spindle grinding wheel connecting rod 1 set

7. Inner shaft spindle 1 set

product-1-1



product-1-1



product-1-1



product-1-1
