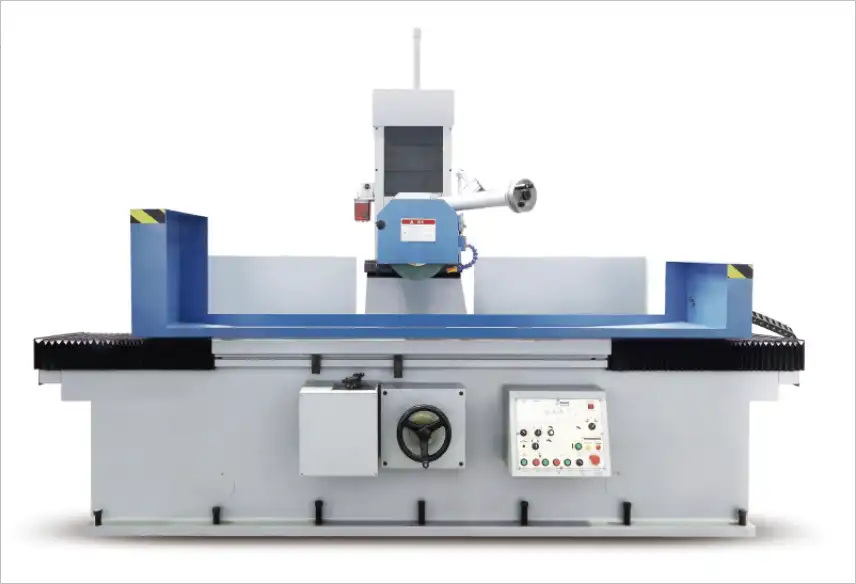

SGS510/612/615/622/722/A1 Moving Column Precision Series Surface Grinder
The integrated moving column structure of the bed makes the accuracy more stable and lasting. The worktable is fully supported and adopts double "V" rails for independent lubrication.
Up, down, front, left, and right three-axis hard rails.
Optional A1 upper and lower axis servo automatic feed.
• SGS Moving column precision series
SGS510/612/615/622/722/A1
1. The integrated moving column structure of the bed makes the accuracy more stable and lasting.
2. The worktable is fully supported and adopts double "V" rails for independent lubrication. Up, down, front, left, and right three-axis hard rails.
3. Optional A1 upper and lower axis servo automatic feed.
|
Model |
Unit |
SGS510/612/615/622/722/A1 |
|
Table size（y*x） |
mm |
500*1000/600*1200/600*1500/600*2200/700*2200 |
|
Grinding wheel size (outer *width*inner ) |
mm |
Φ355*50*Φ127 |
