SGS510/612/615/622/722/CNC-1(CNC-2) Moving Column Precision Series Surface Grinder

SGS510/612/615/622/722/CNC-1(CNC-2) Moving Column Precision Series Surface Grinder

Send Inquiry

• SGS Moving column precision series


    SGS510/612/615/622/722/CNC-1(CNC-2)

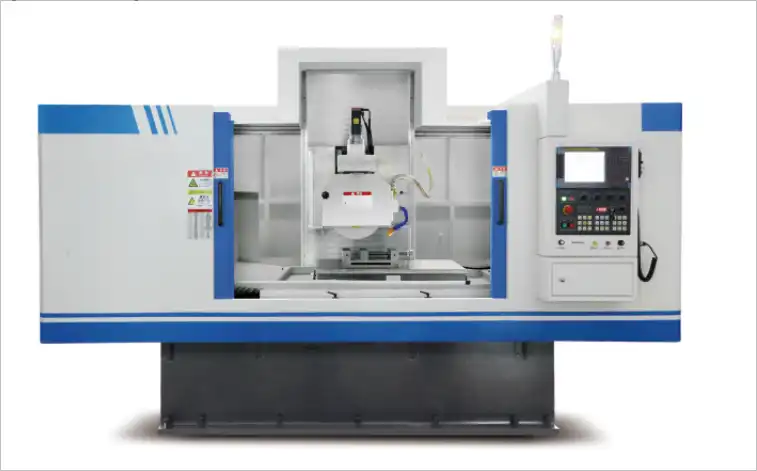

product-1-1

1. CNC models are designed to process workpieces with high size requirements. The machine tool can feed 0.001mm. The operating system is equipped with professional grinding software to meet different types of automatic processing needs.

2. CNC-1 upper and lower linear rails, Front, rear, left and right double V hard rails/one-axis direct servo.

3. CNC-2 upper and lower linear rails, Front and rear left and right double V hard rails/upper and lower front and rear servo automatic, Left and right oil pressure automatic.

4. Optional two-axis automatic sand dressing of the grinding wheel head.

Model

Unit

SGS510/612/615/622/722/A1

Table size(y*x)

mm

500*1000/600*1200/600*1500/600*2200/700*2200

Grinding wheel size

(outer *width*inner )

mm

Φ355*50*Φ127
