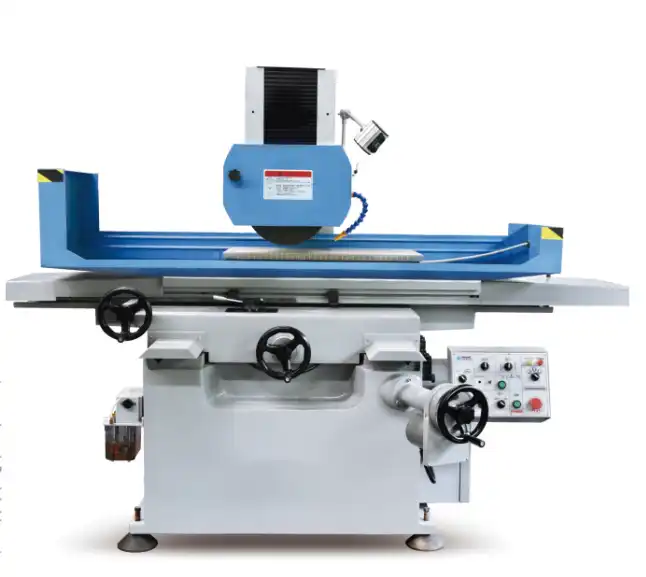

SGS84 Saddle Type Precision Standard Series Surface Grinder
Economical high-precision small surface grinder, using a saddle-type structure that occupies a small area. The three-axis track is a plastic-coated hard rail that has been manually scraped. It has high precision and good durability.
Optional A1 upper and lower axis servo automatic feed.
• SGS Saddle type precision standard series
SGS63
SGS84
1. Economical high-precision small surface grinder, using a saddle-type structure that occupies a small area.
2. The three-axis track is a plastic-coated hard rail that has been manually scraped. It has high precision and good durability. Optional A1 upper and lower axis servo automatic feed.
|
Model |
Unit |
SGS63 |
SGS84 |
|
Table size（y*x） |
mm |
300*600 |
400*800 |
|
Grinding wheel size (outer *width*inner ) |
mm |
Φ355*38*Φ127 |
Φ355*38*Φ127 |
|
Mechanical dimensions(L*W*H) |
mm |
2300*1600*1970 |
2300*1900*2100 |
|
Machine weight |
kg |
1900 |
2800 |
