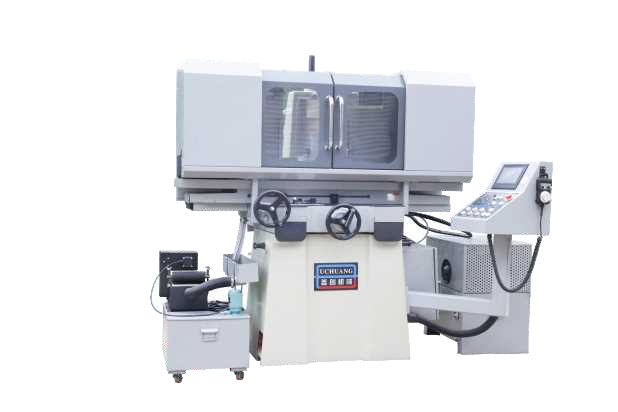

PCA250 Precision Standard Surface Grinding Machine AH/AHD/NC/CNC
PCA250 Precision Standard Surface Grinding Machine AH/AHD/NC/CNC
Send Inquiry
|
|
|
| Parameters Table | parameter | unit | PCA-250 |
| Capacity | Table size(x*y) | mm | 500x200 |
| X axis travel | mm | 600 | |
| Y axis travel | mm | 220 | |
| Max center of wheel to table | mm | 480 | |
| Maximum load | kg | 500 | |
| Table X axis | Table T cell specification | mmxN | 14x1 |
| Table speed | m/min | 5-30 | |
| Y axis | hand wheel feed degree scale | mm | 0.02/5 |
| automatic feed | mm | 0.1-8 | |
| Fast moving speed | mm/min | 990 /1190 | |
| Grinding wheel | Size of Grinding Wheel | mm | Φ180x12.5x31.75 |
| (50HZ/60HZ) Speed of Grinding Wheel | R.P.M. | 2850 / 3360 | |
| Z axis | hand wheel feed degree scale | mm | 0.005/1 |
| Fast moving speed | mm/min | - | |
| Motor | spindle motor | HxP | 2x2 |
| the Z axis motor | W | - | |
| hydraulic motor | HxP | 1.5x6 | |
| cooling motor | W | 40 |
