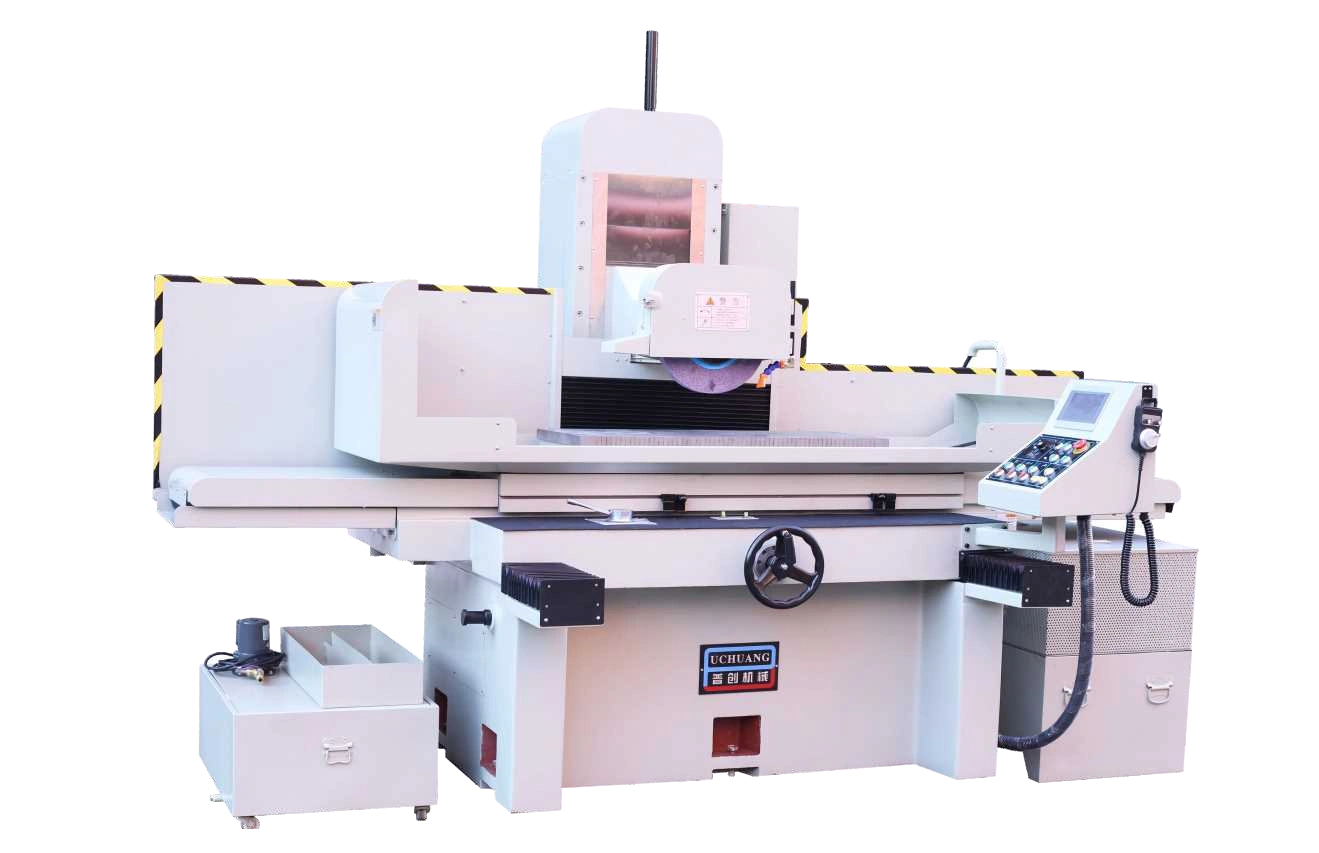

PCA30100/PCA30120 High Precision heavy-duty surface grinding machine
PCA30100/PCA30120 High Precision heavy-duty surface grinding machine
Send Inquiry
| Parameters Table | parameter | unit | PCA-30100 | PCA-30120 |
| Capacity | Table size(x*y) | mm | 1000x300 | 1200x300 |
| X axis travel | mm | 1200 | 1400 | |
| Y axis travel | mm | 360 | 360 | |
| Max center of wheel to table | mm | 500 | 500 | |
| Maximum load | kg | 600 | 600 | |
| TableX axis | Table T cell specification | mmxN | 14x1 | 14x1 |
| Table speed | m/min | 5-30 | 5-30 | |
| Y axis | automatic feed | mm | 0.1-8 | 0.1-8 |
| (50HZ/60HZ) Fast moving speed | mm/min | 990 /1190 | 990 /1190 | |
| Grinding wheel | Size of Grinding Wheel | mm | 350x40x127 | 350x40x127 |
| (50HZ/60HZ) Speed of Grinding Wheel | R.P.M | 1450 /1740 | 1450 /1740 | |
| Z axis | Fast moving speed | mm/min | 230 | 230 |
| Motor | spindle motor | HxP | 7.5x4 | 7.5x4 |
| the Z axis motor | W | 750 | 750 | |
| hydraulic motor | HxP | 2x6 | 2x6 | |
| cooling motor | W | 90 | 90 | |
| the Y axis motor | W | |||
| Size | Machine Tool Profile Size | mm | 3200x1750x1220 | 3600x1750x1220 |
| weight | kg | ≈2700 | ≈2800 |
